Project 2: MyHeritage Tree


Goal 6: PedigreeMap



Goal 6: Use PedigreeMap™ to view important locations in your peoples' lives.


PedigreeMap is a powerful tool that helps you see locations and events for people in your tree, all in one convenient view. It features a Places list, a Google map, and an Events list.


Choices


A Work with places in PedigreeMap.


Summary
  1. In a person's Profile, on the left side, click View in PedigreeMap (or, you can click More in the Family Tree menu and select Pedigree Map). A list populates in the left panel of the screen, with the number of ancestor events in your tree for each country indicated. A world map is displayed on the right. (If you have a large tree, the first load may take a while.) A green bar indicates the progress of loading the locations onto the map. There is a limit of 2,000 locations displayed.
  2. Click a country in the left panel to open a list of ancestor locations in that country.



  3. Click a location in the left panel (orange circle) to display it in the map in the center panel, and show ancestor events for the location in the right panel. An alert icon next to a place name indicates there are multiple locations for the same place name; you can select the one you want in the right panel. (Unknown countries and places not found on the map, if any, are included at the bottom of the list.)
  4. To learn more about a location in the right panel, click the Info icon next to its name. (Click the resulting arrow to restore the panel.)
  5. If you want to hide the left or right panel to allow more room for viewing the map, click the X at the top of either panel. (Click the resulting arrow to restore the panel.)
  6. To sort and group the Places list, click the arrows next to the "Find a place" box. The following combinations can be used:
    • Sort by Count, Group by Countries—(Default) Lists countries by their numbers of ancestor events, in descending order. Locations are grouped within each country.
    • Sort by Count, Group by Flat List—Locations are placed in a single list (not grouped by country), sorted by count from high to low.
    • Sort by Name, Group by Countries—Lists countries by their names, in alphabetical order. Locations are grouped within each country.
    • Sort by Name, Group by Flat List—Locations are placed in a single list (not grouped by country), sorted alphabetically by location name.
  7. To search for a location, click the "Find a place" box, type the name of the location, and click the entry that appears in the left panel. To clear the search results and return to the full list of locations, click the X in the "Find a place" box.
  8. To change starting person for PedigreeMap, click the name in the menu bar and type or select and entry in the drop-down menu.
  9. To change the people included in PedigreeMap, click Extended Family in the top menu and select Immediate Family or Ancestors or Descendants or Solo (just the Profile individual). To learn about the selection criteria, hover over the menu entry.

Resources
  1. Learn more about PedigreeMap in this video.

    RT—Sharing Information between FamilySearch and Ancestry—12:16


  2. Exercises



B Work with the world map and geographic locations.


Summary

    Note : Numbers displayed on the Google map indicate modern-day roads and highways.

  1. If you want to hide the left or right panel to allow more room for viewing the map, click the X at the top of either panel. (Click the resulting arrow to restore the panel.)
  2. To change the view, click and drag the map in any direction.
  3. You can hover over an orange circle in the map to identify its location name and reference count.
  4. To zoom in on the view, click the plus icon at the bottom of the map. To zoom out, click the minus icon. To view the map in full-screen mode, click the broken-box icon.
  5. To switch to Satellite view, click Satellite at the bottom of the map.

  6. To see where people's events are concentrated, click Heatmap (lower right). Areas are color-coded from light to heavy, using green, yellow, orange, and red rings.
  7. To view the world map, click the globe icon at the bottom of the map. To return to the previous location view, click the location name at the top of the right panel.
Exercises



C Work with events.

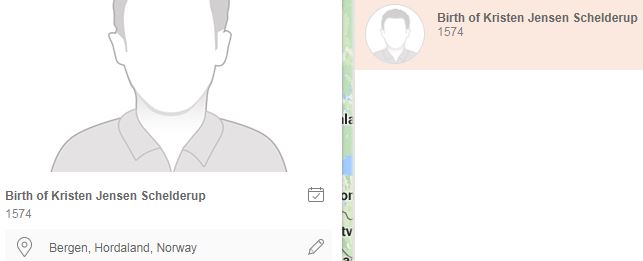

  1. In the left pane of the PedigreeMap, click a location. This displays a window on the right side for viewing or editing event details.
  2. Click an event in the list to view its details.
  3. To edit information for the event, click the calendar icon. This opens the Essentials screen where you can make a variety of edits.
  4. To edit the place for an event,
    a) Click the pencil icon next to the place name;
    b) Choose a place from the drop-down list or type your own place; and
    c) Click Save.
  5. To see additional information for the person in an event,
    a) Click the event (right side);
    b) Hover over the person's name in the pop-up window; and
    c) Click the down-arrow that appears. You can then view the profile, tree, or your relationship to the person, as well as show the location of the event on the map.
  6. If multiple versions of a place name exist (upper right),
    a) Click the checkmark icon next to the one you prefer;
    b) If you want to use the preferred location for all references in your tree, check the corresponding box in the dialog; and
    c) Click OK.


D Use PedigreeMap options.


    The PedigreeMap menu bar enables you to select different people on which to base the resulting views. It also displays the number of places and references (events) in the current view.

  1. To base the view on a different person,
    a) Click the name that appears to the right of "PedigreeMap"; and
    b) Type the new name and select it from the drop-down list.
  2. To include a different set of people in the view, click Extended family in the dropdown menu. You can choose from Extended family, Immediate family, Ancestors, Descendants, or Solo. Hover over each option to see its description.
  3. To enlarge the map area, click the "Full screen" icon at the right edge of the menu bar. (Click it again to return to normal view.)

Resources
  1. To learn more about using PedigreeMap, watch the video.

    MH—PedigreeMap
Exercises



E Use filters to restrict the individuals included.


  1. Click the "Show filters" icon near the right edge of the menu bar.

  2. Move the slider bar to set the number of generations to include, based on the person shown in the menu bar. The left side of slider shows the maximum number of descendant generations, and the right side shows the maximum number of ancestor generations (10, if available).


  3. To eliminate an event type (Birth, Death, Photo, or Other), clear its checkbox in the center area of the menu bar.
  4. To adjust the date range for events, move the buttons in the date slider bar.
Exercises
